SERAFIN ECOSOW
NARROW FOLD
Single Disc Seeder

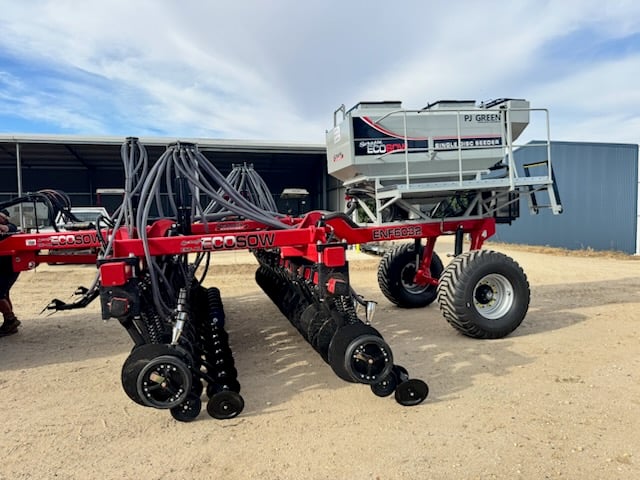

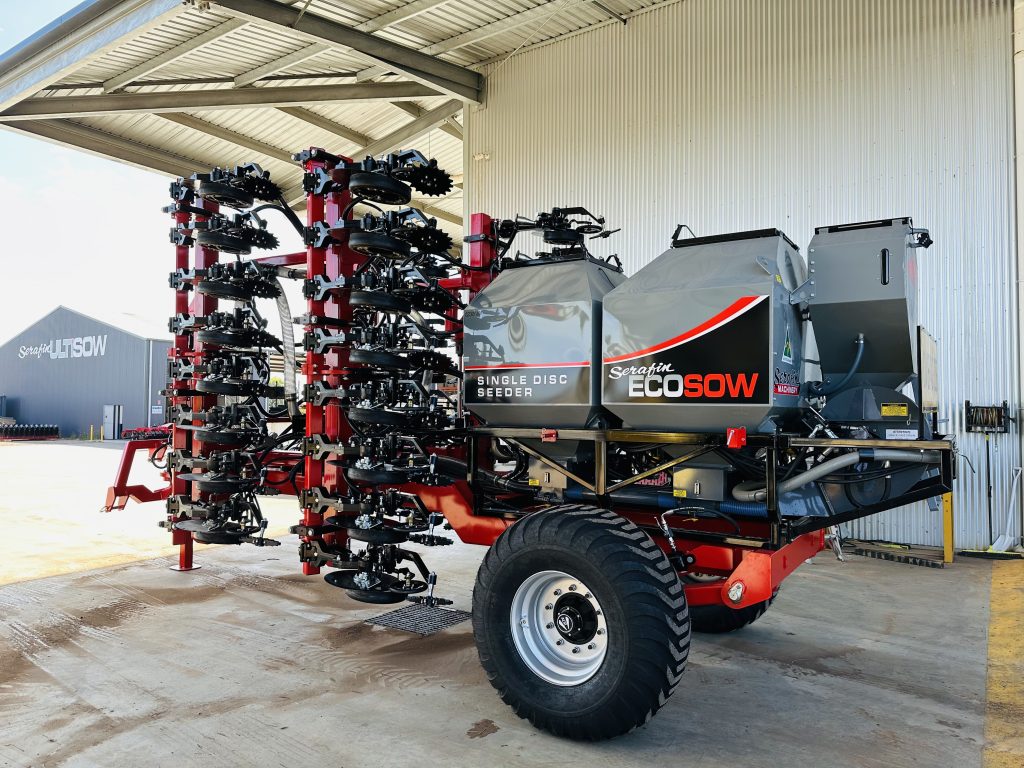

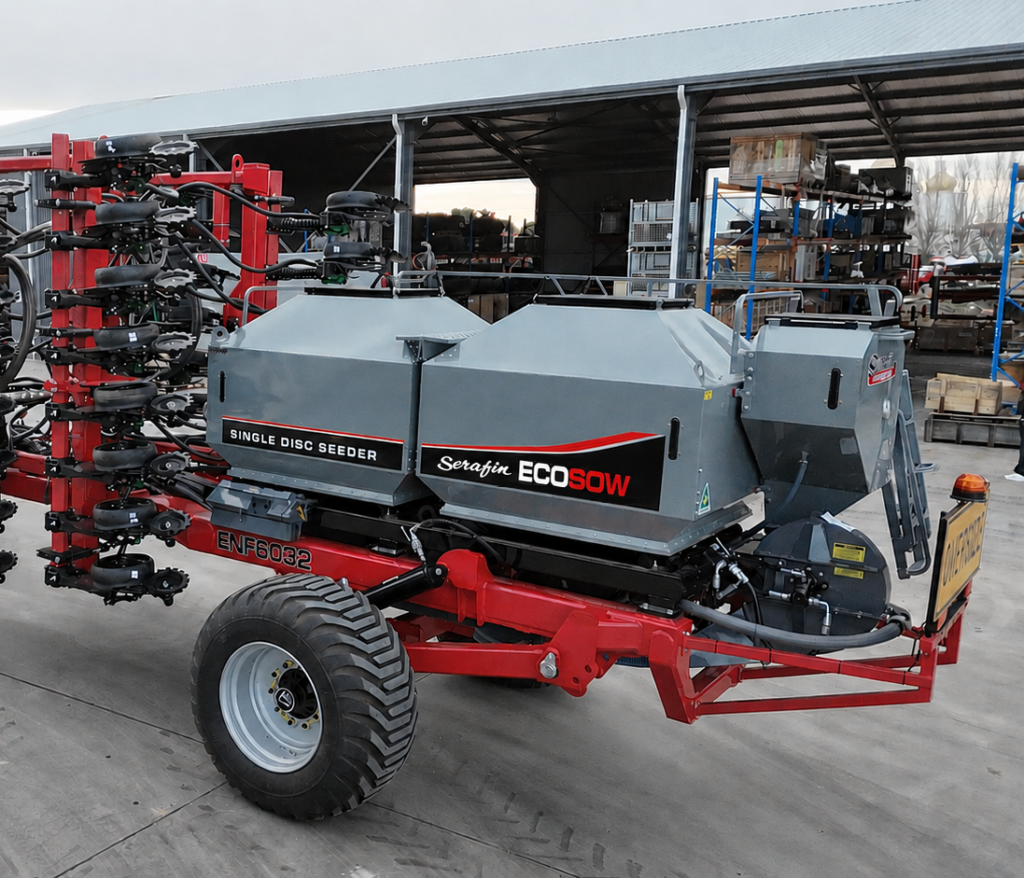

SERAFIN ECOSOW NARROW FOLD SINGLE DISC SEEDER
The Serafin ECOSOW Narrow fold is an all new offering in our seeder range, for those looking for versatility and maneuverability at a competitive price. Whether you are a grazier needing to achieve excellent penetration into hard, compacted ground, a contractor who operates in various crops or you’re a farming enterprise looking for low maintenance and reliability over thousands of hectares, the ECOSOW has options to suit your operation.
The Serafin EcoSow comes in 32-42 row models, with a 6m and 7m working width and a transport width of 3m. The ECOSOW has a very strong foundation containing a 200mm x 200mm x 12mm heavily constructed center frame with 150mm x 100mm x 9mm wing sections. Complete with a 3,000L air box, standard air kit and hydraulic hoses to tractor and rear lifting frame for maintenance and set up.
SERAFIN ECOSOW NARROW FOLD SINGLE DISC SEEDER 6-7M Specifications
| MODEL | Rows | Row Spacing | Working Width | TRANSPORT WIDTH | AIR BOX CAPACITY | Weight | HP Requirement | PRICE EX GST |
|---|---|---|---|---|---|---|---|---|
| PJ GREEN 3000L BIN | ||||||||
| ENF528HL-P | 28 | 178mm | 5m | 3m | 3,000L | 7,200kg | 140hp | $199,500 |
| ENF632HL- P | 32 | 187mm | 6m | 3m | 3,000L | 7,600kg | 150hp | $208,000 |
| ENF636HL - P | 36 | 166mm | 6m | 3m | 3,000L | 8,000kg | 165hp | $217,000 |
| ENF738HL - P | 38 | 184mm | 7m | 3m | 3,000L | 8,300kg | 180hp | $225,000 |
| GASON 3200L BIN | ||||||||
| ENF528HL-G | 28 | 178mm | 5m | 3m | 3,200L | 7,300kg | 140HP | $220,000 |
| ENF632HL-G | 32 | 187mm | 6m | 3m | 3,200L | 7,700kg | 150hp | $229,000 |
| ENF636HL-G | 36 | 166mm | 6m | 3m | 3,200L | 8,100kg | 165hp | $238,800 |
| ENF738HL-G | 38 | 184mm | 7m | 3m | 3,200L | 8,450kg | 180hp | $246,000 |
| GASON 5100L BIN | ||||||||
| ENF632HL-G-1250 | 32 | 187mm | 6m | 3.25m | 5,100L | 8,200kg | 160hp | $248,800 |
| ENF636HL-G-1250 | 36 | 166mm | 6m | 3.25m | 5,100L | 8,850kg | 180hp | $256,600 |
| ENF738HL-G-1250 | 38 | 184mm | 7m | 3.25m | 5,100L | 9,150kg | 190hp | $265,500 |
| ENF742HL-G-1250 | 42 | 167mm | 7m | 3.25m | 5,100L | 9,500kg | 200hp | $274,900 |
SERAFIN ECOSOW NARROW FOLD SINGLE DISC SEEDER 6-7M Features
Air Kit
Complete with standard air kit and hydraulic hoses to tractor
Hitch
Cat 3 – Three point linkage hitch with karge swivel ball as standard
Tyres
2x 550/60 x 22.5 flotation tyres
Hi-Lift
Rear hydraulic lifting frame for easier maintenance and calibration
SERAFIN ECOSOW NARROW FOLD SINGLE DISC SEEDER TESTIMONIAL
SERAFIN ECOSOW NARROW FOLD SINGLE DISC SEEDER Video

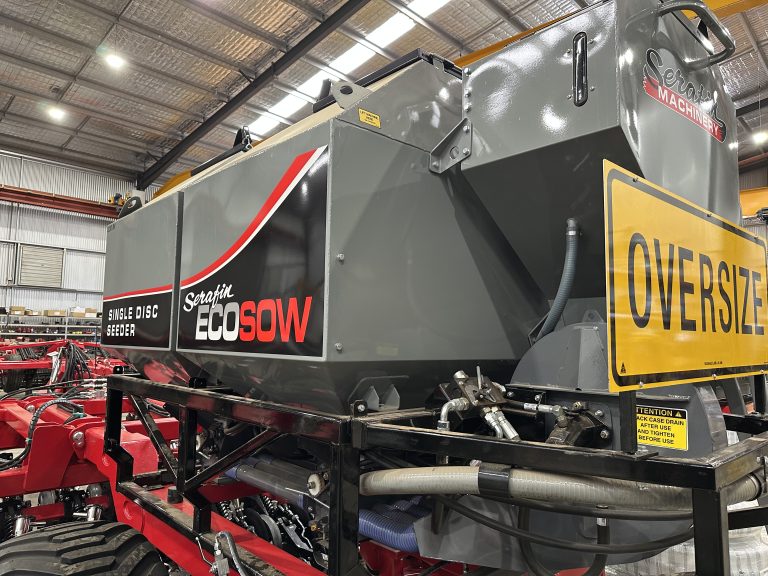

Optional Gason 3,200L or 5,100L Mounted Box
Gason 3,200L – 1230IM Black Series
Featuring a 3,200lt 2 bin with 50/50 split, fully variable rate with electric drive, Series One metering system, and a SmartAg 7500 touch screen as standard. It is simple to operate, easy to calibrate and accurate.
There are many options for this including different monitor options and blockage sensor kits. The 380L pasture box is optional.
It also has a low oil requirement of 75L / min.
Gason 5,100L – 1250IM Gason Bin
Featuring a 5,100lt 2 bin with 50/50 split, fully variable rate with electric drive, Series One metering system and a SmartAg 7500 touch screen as standard – It is simple to operate, easy to calibrate and accurate.
There are many options for this including different monitor options and blockage sensor kits. The 380L pasture box is optional.
It also has a low oil requirement of 75L / min.
