BALDAN GTCR 20-40 PLATE OFFSET DISC

Baldan’s GTCR range features a heavy construction frame with large 2 1/4 shafts and oil bath bearings, designed for opening up new ground and destroying suckers. Featuring standard 340mm spacing across all plate models, fitted with cast spool spacers to allow extra life for your discs. The GCTR has the ability to work for long periods in different conditions due to the strong mud scrapers fitted.  GCTR 20-30 plate models come with 2x 400/60×15.5 tyres, whereas the GCTR 34-40 plate models come with 4x 400/60×15.5 tyres to carry the extra weight.

The GCTR 36-40 is built strong with a special trussed centre frame for added support and weight, making it perfect for opening new ground, compacted cattle ground or cotton ground.

BALDAN GTCR OFFSET DISC 20– 40 Specifications

# discs Working Width axles Row Spacing HP Requirement Disc Size Weight rrp (ex gst)
20 3.23m 2 1/4" 340mm 200-210 32" x 9mm 4,053kg $56,000
22 3.57m 2 1/4" 340mm 220-230 32" x 9mm 4,369kg $57,700
24 3.91m 2 1/4" 340mm 240-250 32" x 9mm 4,661kg $60,500
30 4.93m 2 1/4" 340mm 300-320 32" x 9mm 5,112kg $70,000
34 5.3m 2 1/4" 340mm 330-400 32" x 12mm 7,900kg $104,500
36 5.7m 2 1/4" 340mm 360-430 32" x 12mm 8,375kg $112,900
40 6.5m 2 1/4" 340mm 400-480 32" x 12mm 9,030kg $129,000

Baldan GCTR OFFSET DISC 20-40 FEATURES

BALDAN GTCR OFFSET DISC 20– 40 - GTCR

Frame Truss Support

Over the frame truss support for additional weight and strength.

BALDAN GTCR OFFSET DISC 20– 40 - GTCR

Baldan Gold Oil Bath Bearings

Oil Bath bearings with 2 year Replacement Warranty.

BALDAN GTCR OFFSET DISC 20– 40 - GTCR

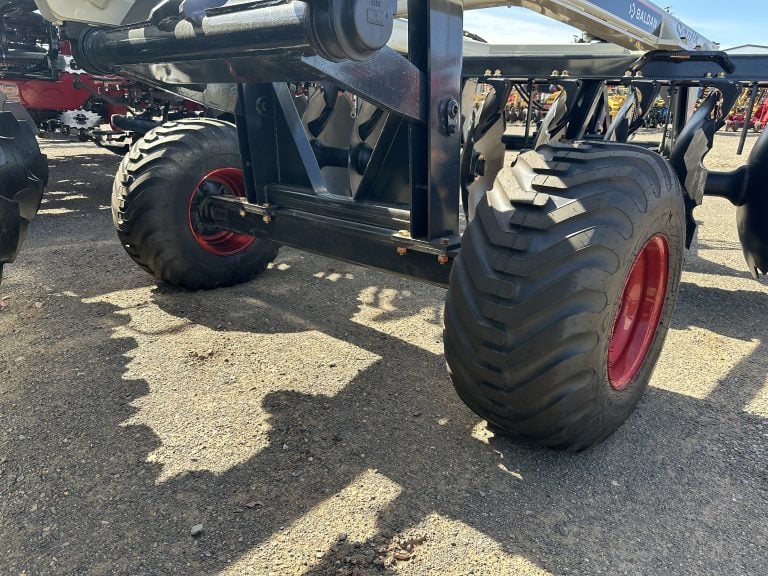

Dual Flotation Tyres (36-40 Disc only)

Large dual 4x 400/60×15.5 flotation tyres to carry weight. GCTR 20-30 plate models are fitted with 2x 400/60×15.5 flotation tyres.

BALDAN GTCR OFFSET DISC 20– 40 - GTCR

Qr Reference Code

Allows for quick referencing in the field for user and parts manual. Specific for this exact machine.

BALDAN GTCR OFFSET DISC 20– 40 - GTCR

New Style Spring and Chain Assembly

Allows for easy hook up

BALDAN GTCR OFFSET DISC 20– 40 - GTCR

Double C Section Main Frame

C-Sections inside each other effectively giving you steel top and bottom providing more strength and weight for penetration.

BALDAN GTCR PRODUCT VIDEO

Brochure & User Manual Download
