Farmet
TRITON HEAVY
Combined Speed Disc Cultivator
The perfect combo of discs & cultivation in one pass - just BUILT HEAVIER!
The TRITON HEAVY brings a speed discs ability to cut, & bury crop residue and give a fully width soil loosening, to the next level; while achieving a deep cultivators ability to improve water absorption & reducing soil compaction all in ONE PASS.
The Cultivator is simple and easy to use with hydraulic adjustment of shanks and discs, hydraulic protection with accumulators of shanks and discs along with very low maintenance with a minimum number of lubrication points. The Triton HEAVY has a working speed of 8-12kph and a working depth of down to 400mm, with models ranging from 210-600HP.
The Triton HEAVY is an excellent solution for difficult conditions where the farmer needs to be able to break up their soils without leaving big clods, whilst being able to handle high crop residue. If you want something to tame a TIGER, this is the machine.
FARMET TRITON HEAVY Specifications
| TRITON HEAVY 300 P RIGID | TRITON HEAVY 410 PS FOLDING | TRITON HEAVY 490PS FOLDING | TRITON HEAVY 580 PS FOLDING | TRITON HEAVY 660 PS FOLDING | |
|---|---|---|---|---|---|
| Working width | 3000mm | 4100mm | 4900mm | 5800mm | 6600mm |
| Transport width | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm |
| NUMBER OF DISCS | 14 | 20 | 24 | 28 | 32 |
| Disc Working depth | 180-210mm | 180-210mm | 180-210mm | 180-210mm | 180-210mm |
| Diameter of discs | 620mm | 620mm | 620mm | 620mm | 620mm |
| shank working depth | 400mm | 400mm | 400mm | 400mm | 400mm |
| NUMBER OF Shanks | 7 | 9 | 11 | 13 | 15 |
| tyre size | 710/40 R22.5 | 710/40 R22.5 | 710/40 R22.5 | 710/40 R22.5 | 710/40 R22.5 |
| WEIGHT | 5,300KG | 8,100KG | 9,100KG | 10,100KG | 12,650KG |
| HP REQUIRED | 210-350 | 290-380 | 350-460 | 410-540 | 450-600 |
| PRICE EX GST | $131,451 | $181,344 | $210,322 | $246,121 | $276,737 |
*Prices don’t include delivery, setup, or dealer charges. Prices exclude GST and can be changed without prior notice.*
1Â Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
2Â Machine weight with double roller.
3 Recommended Retail Price does not include GST, Delivery or Dealer Charges. RRP is based on a standard specified machine as per current Serafin-Farmet RRP Price Book Version 1.6. Â Different Optional Extra’s are available so please contact the Sales Team or your local dealer for more information.
P = Non Folding   PS = Folding
FARMET TRITON HEAVY Features
- 1. Full-surface tillage zone. The double-row disc section with aggressive geometry ensures perfect full-surface undercut to a maximum depth of 18 / 21 cm with intensive mixing of crop residues. The disc section also spreading well crop residues over the surface.
- 2. Tillage zone. The depth of tillage up to 40 cm. Tilling chisels with optimized geometry in two rows ensure deep zone loosening for increase of water infiltration.
- 3. Furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
- 4. Clods crumbling and soil re-compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.
Full-surface tillage zone. The double-row disc section with aggressive geometry ensures perfect full-surface undercut to a maximum depth of 18 / 21 cm with intensive mixing of crop residues. The disc section also spreading well crop residues over the surface.
Tillage zone. The depth of tillage up to 40 cm. Tilling chisels with optimized geometry in two rows ensure deep zone loosening for increase of water infiltration.
Furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
Clods crumbling and soil re-compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.
High - Strength Materials
High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steels.
See video below for more infoÂ

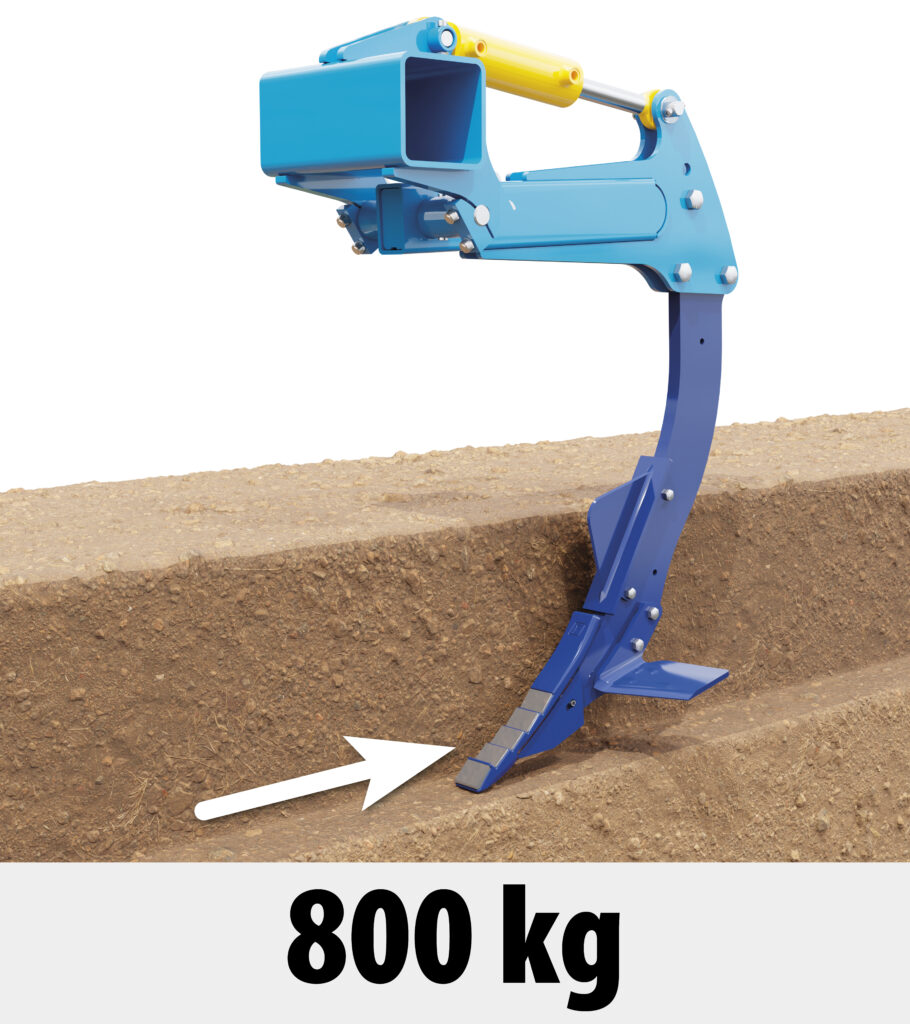

Extreme durability of working units
The time-tested tines are made of high-strength abrasion-resistant steels and they are equipped with carbide plates at the point of tine. The top part of the tine can be supplemented with other carbide plates or tungsten carbide weld deposits to extend the lifespan even more.
Maintenance-Free Disc Hub bearings
Maintenance-free discs hubs ensuring consistent machine operation without additional lubrication or added maintenance.Â
This means you will spend more time working, and less time maintaining or servicing.Â
Versatile Double Ring Roller
Double Ring Roller with a strong bearing system and versatility in different conditions.Â
Right Side Deflector Plate
Easy setting of the side deflector by a pin – designed to ensure optimum pass to pass performance.
Left Side Deflector Disc
Easy setting of the side deflector by a pin – designed to ensure optimum pass to pass performance.
Massive Transport Tyres
Large 710/40 R22,5 flotation tyres
Narrow Transport Width
Narrow folded transport width of 3m, making it very east to get from job to job, without the need for an escort vehicle.Â
Strong Hitch & Hydraulic Jack Stand
Hitch and Hydraulic Jack Stand, including a weight pack for better balance when disconnected.Â
Versatility - AT ITS BEST
The Farmet Triton Heavy 660PS can be set up for various soil types, depths and tasks, including lifting up one row of shanks separately to the other, and even operating when the rear roller is lifted up.
FARMET TRITON HEAVY Options
Optional Items For Different Condition
Options include:
Different type and width shank points, bolt on wing sections for the shanks, different size discs, and different types of rear rollers.
Easy Operation & Maintenance
- Excellent solution for heavy soils
- Low pulling requirement
- High throughflow of the soil and crop residue
- Efficient cutting and even mixing of crop residue into the processed soil layer
- Deep zone tillage with minimal clods formation
Hydraulic adjustment of the Disc Working Depth
Easy and quick setting the working depth of discs by setting spacers at hydraulic cylinder. A simple to understand depth guide sticker is located on the machine for easy reference.
Hydraulic adjustment of the Shank Working Depth
Easy adjustment of the working depth according to the depth gauge sticker, performed by using the Spacer on the roller piston rods.
Hydraulic adjustment of the Levelling Discs
Easy and quick setting the discs comfortably from tractor cabin even during work in a field. A simple depth gauge shows you what depth you are working to.Â
Combined cultivator Triton 300 P HEAVY
- 1. The discs with the diameter Ø 620 mm arranged in two rows undercut soil.
- 2. The massive tines arranged in two rows tillage the soil and incorporate crop residue.
- 3.The levelling discs for perfect levelling of surface.
- 4. The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.
Combined cultivator Triton 660 PS HEAVY
- 1. The discs with the diameter Ø 620 mm arranged in two rows undercut soil.
- 2. The massive tines arranged in two rows tillage the soil and incorporate crop residue.
- 3.The levelling discs for perfect levelling of surface.
- 4. The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.
Extra Steel Line Technology
Built Strong from the Best Materials to Last a Lifetime
Farmet’s special eXtra STEEL line steel is three (yes, 3) times the tensile strength of standard steel. This eXtra strength gives you a much longer life of the machine, less weight & lower fuel consumption.
FARMET TRITON HEAVY Videos
